Frost Patterns

things to make and do on a train

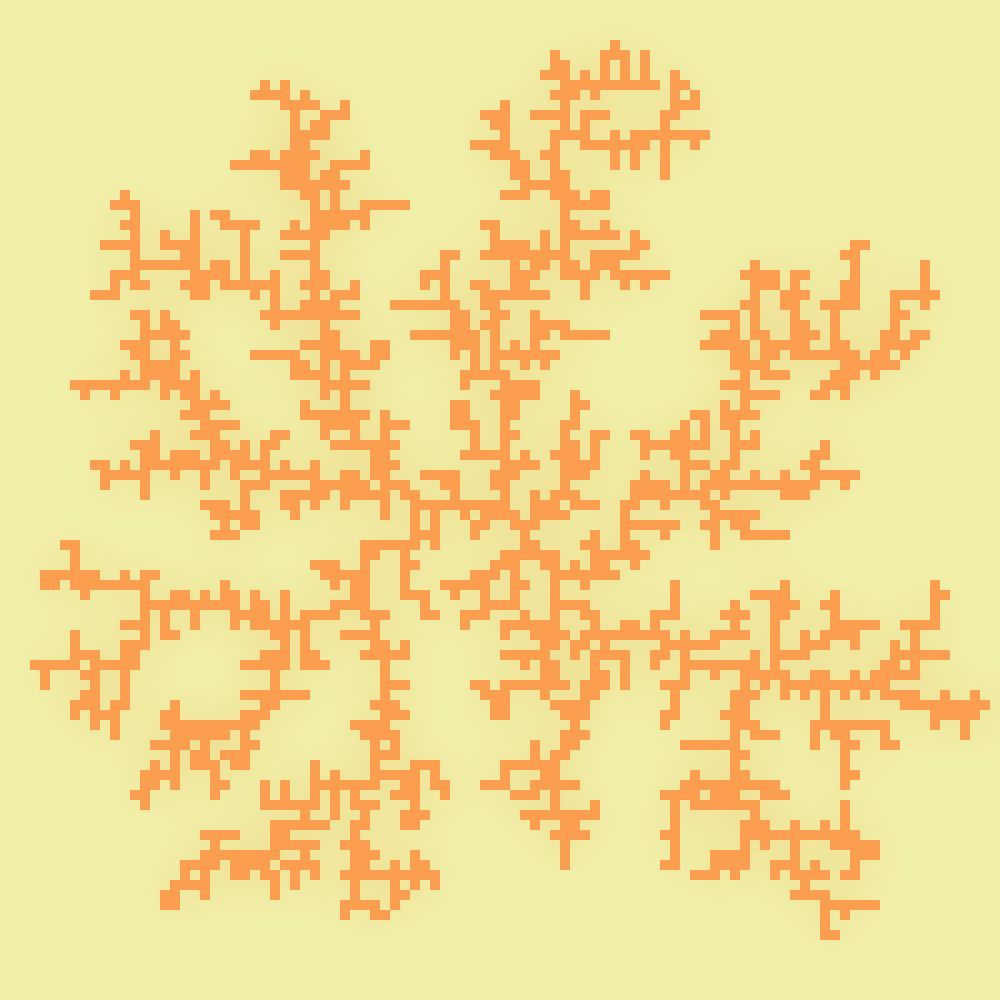

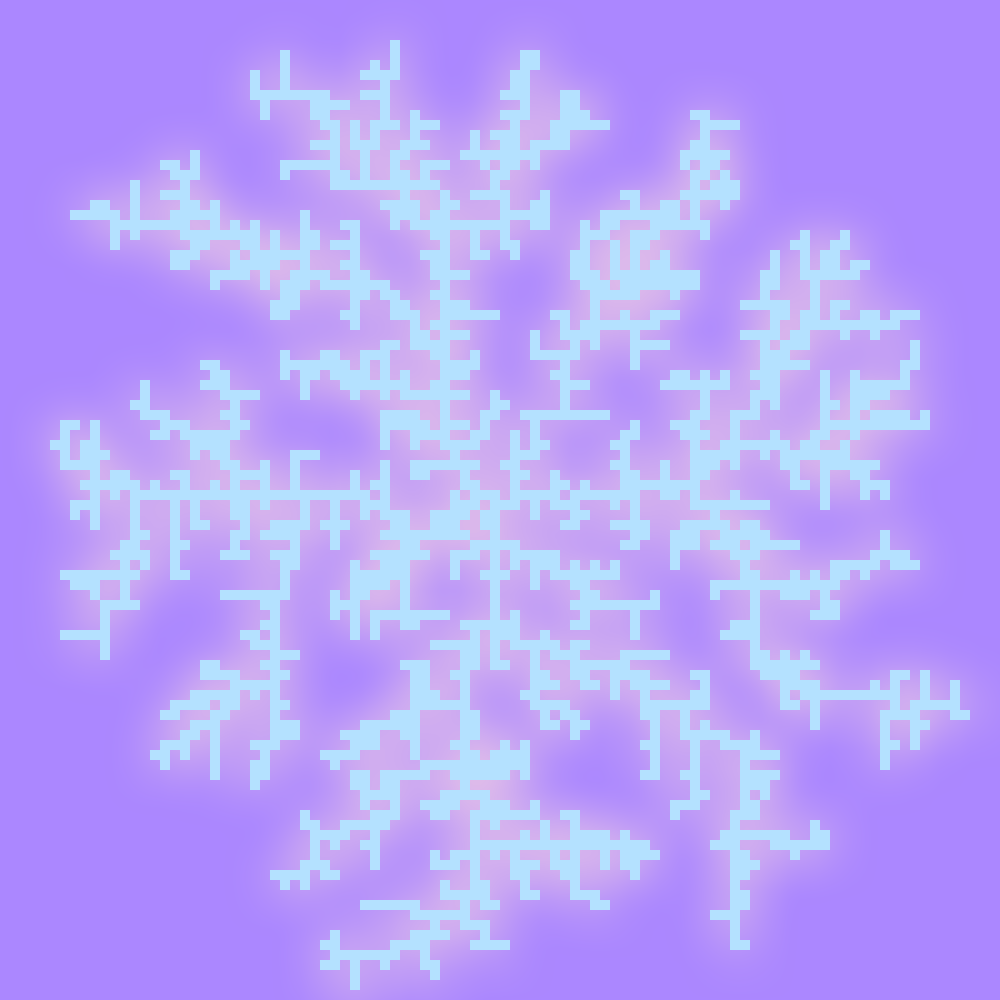

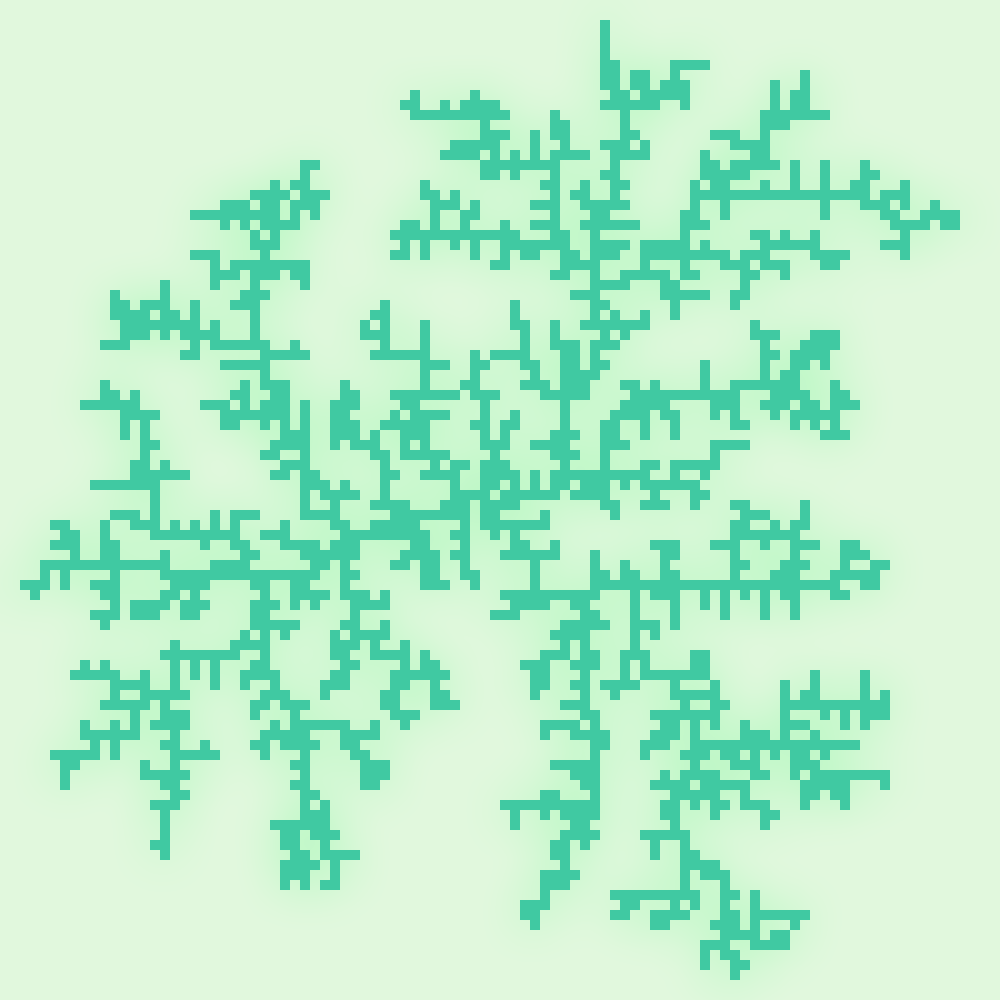

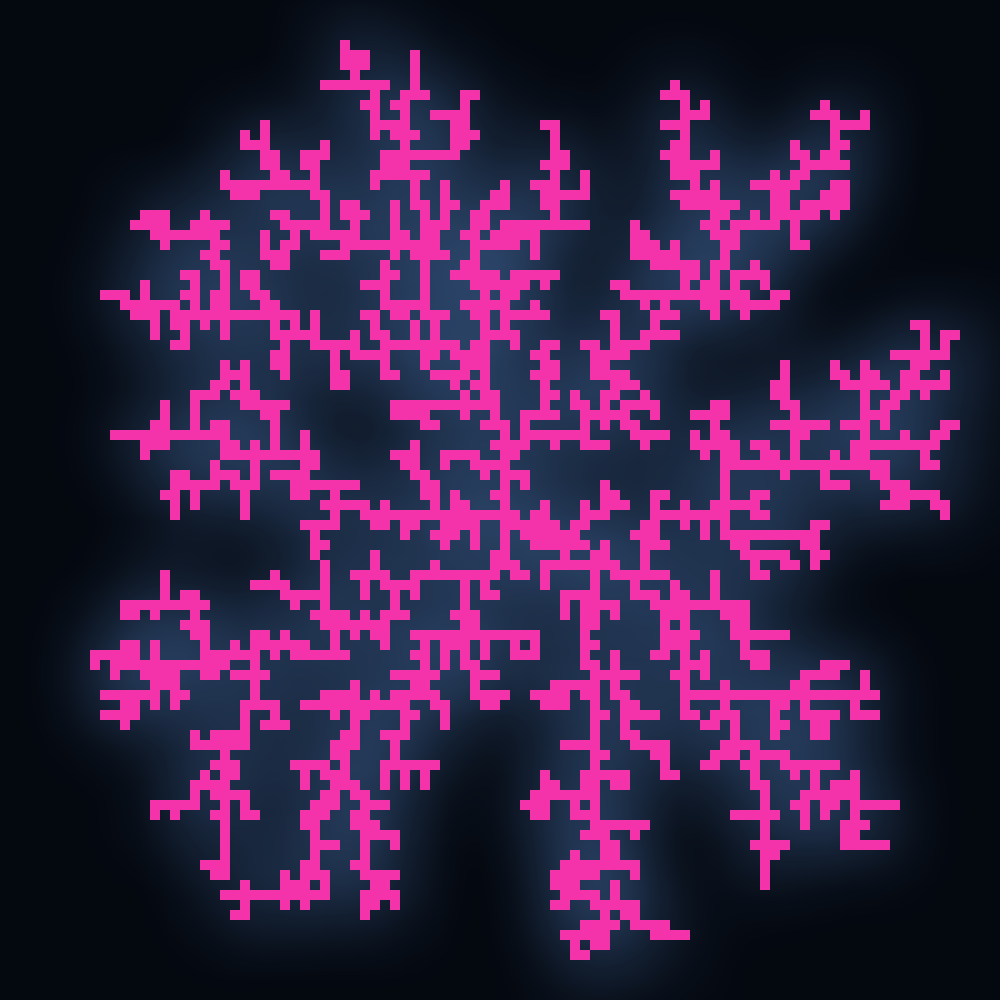

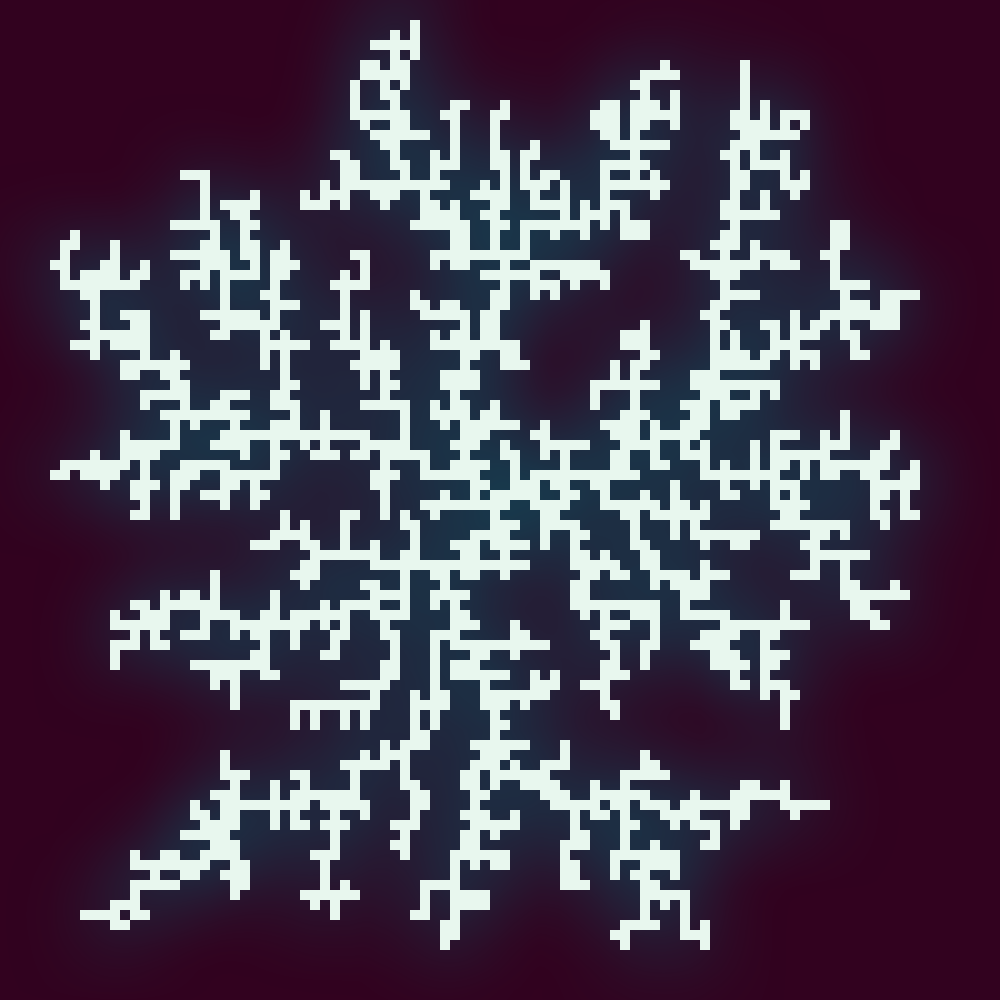

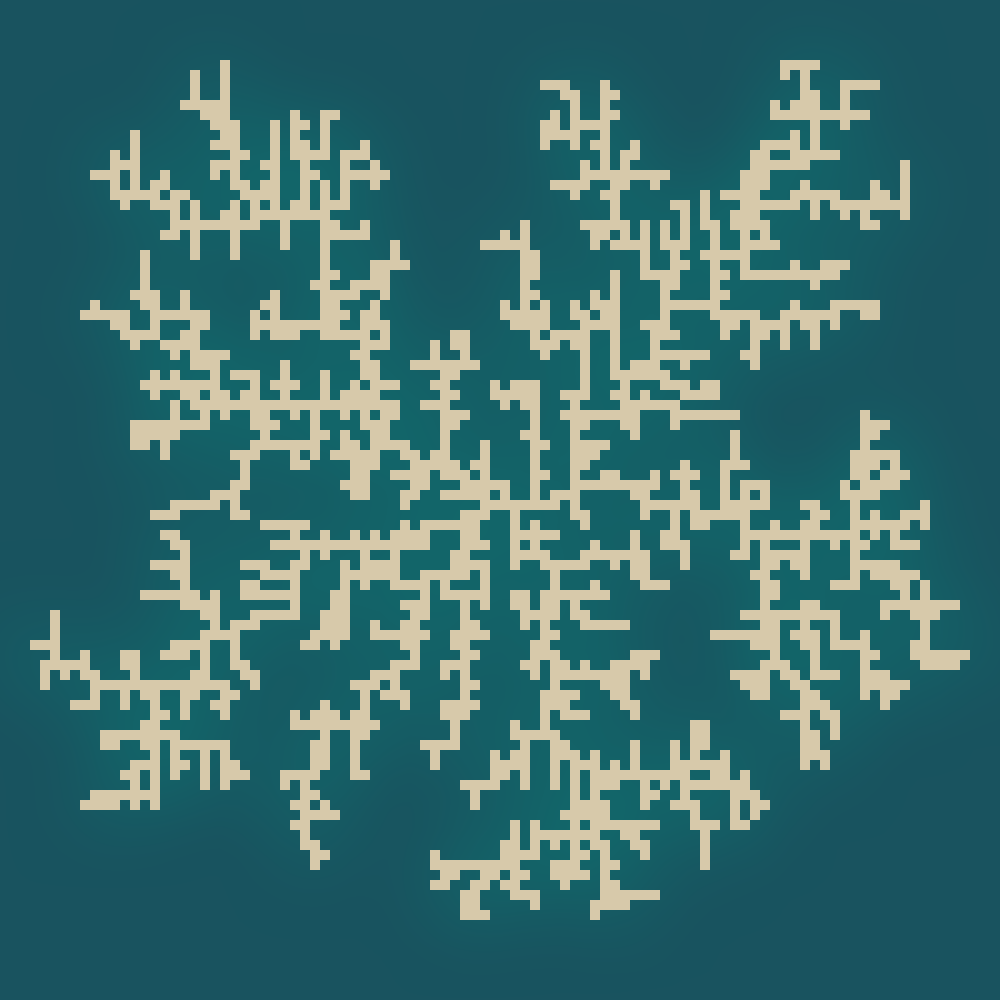

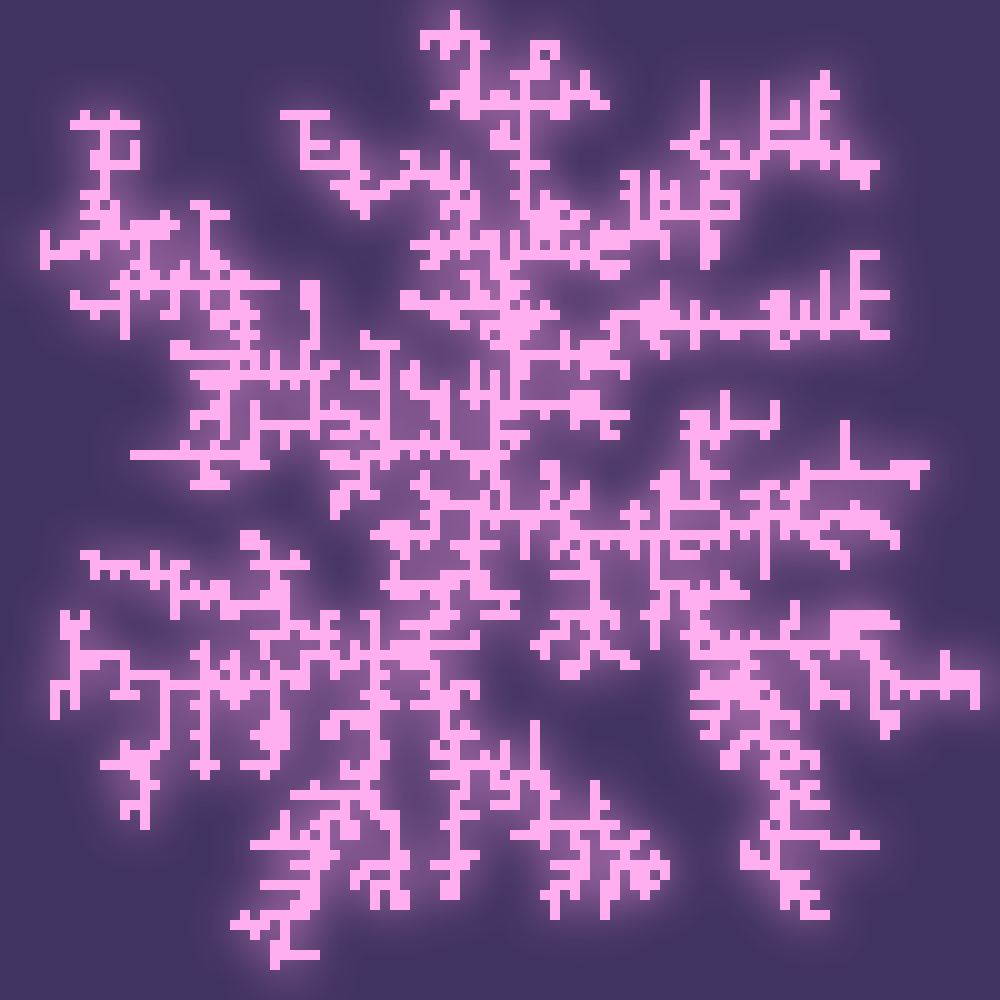

a result of the DLA algorithm where a cell is a light blue glowing square and empty space is purple a result of the DLA algorithm where a cell is a dark green square and empty space is light green, blurred slightly, with the unblurred result overlaid on top in green a result of the DLA algorithm where a cell is a orange square and empty space is sandy yellow, blurred slightly, with the unblurred result overlaid on top in orange a result of the DLA algorithm where a cell is a light green square and empty space is dark mint-green, blurred slightly, with the unblurred result overlaid on top in beige a result of the DLA algorithm where a cell is a light blue square and empty space is very dark blue, blurred slightly, with the unblurred result overlaid on top in purple a result of the DLA algorithm where a cell is a light green square and empty space is dark red, blurred slightly, with the unblurred result overlaid on top in white

people also said it looks like randomly generated dungeons or mycelium

I learned about an algorithm called Diffusion-limited aggregation from this youtube video about procedural landscape generation for games.

The process looks like this:

It happens on an empty grid with one cell in the middle. Let's call that cell the shape. Then, in each next step of the algorithm, a new cell is spawned in a random location and does a random walk until it touches a side of the shape, after which it stays there and becomes a part of the shape.

Me infodumping about this to Shebang

cause copying dms is more fun than writing an article

Shebang system
hiiiiii :3
cqql
:3
I was coding a thing
more generative art
I started with this:

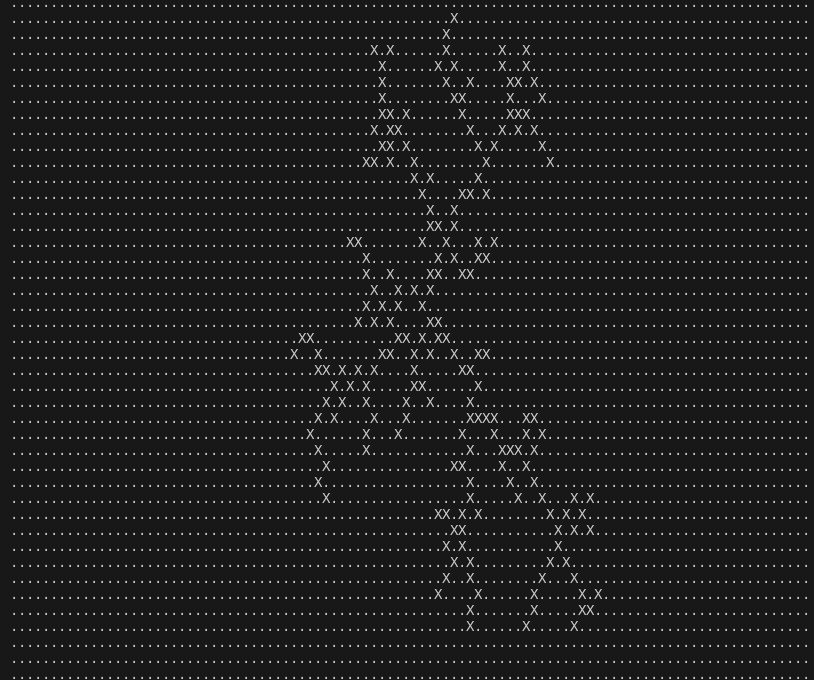

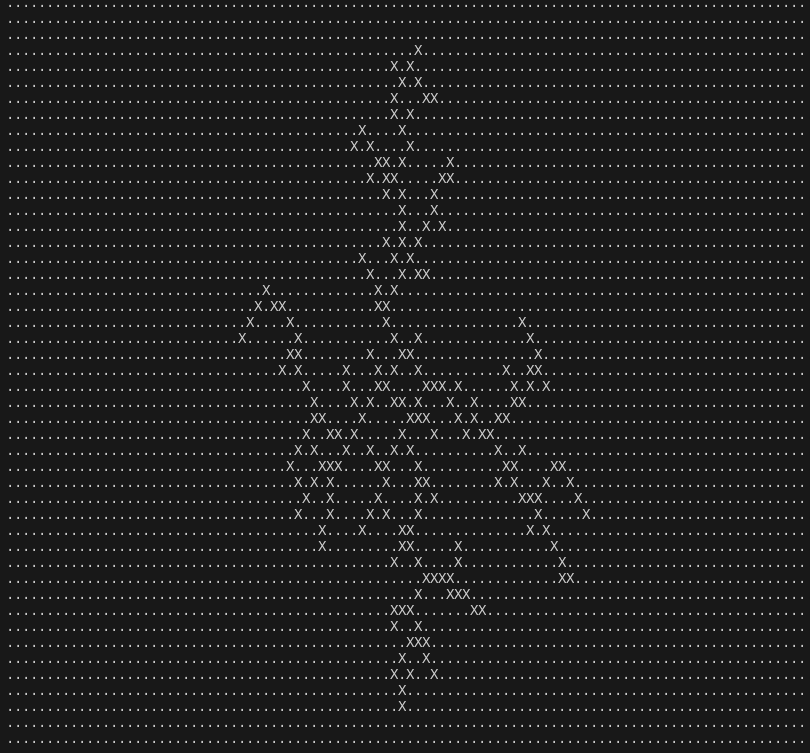

a result of the DLA algorithm displayed in the console with ascii characters, using # (hash) as a cell and a . (fullstop) as an empty space a result of the DLA algorithm displayed in the console with ascii characters, using # (hash) as a cell and a . (fullstop) as an empty space
an algorithm for generating organic shapes like this
then image generation time
Shebang system
you know how to make conversations with neurodivergent people by immediately infodumping.
congratulations.
this is a fine skill to have
cqql

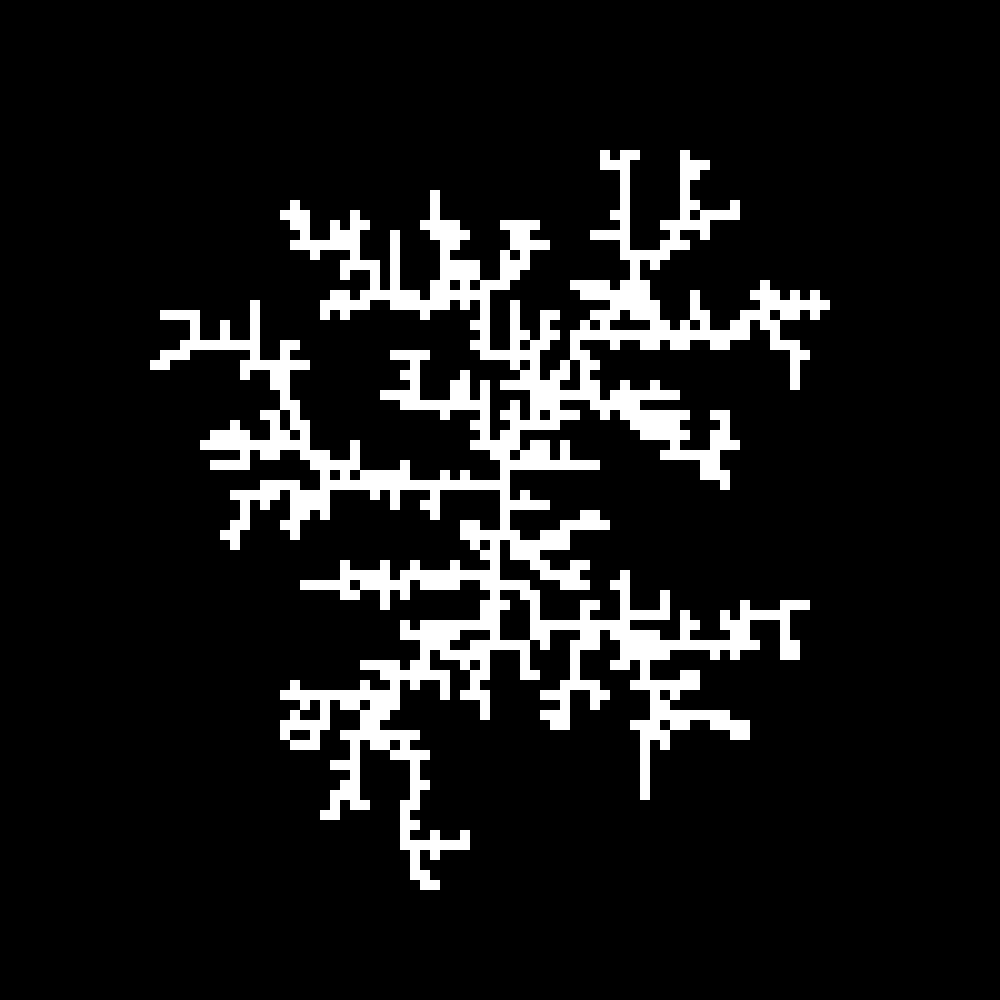

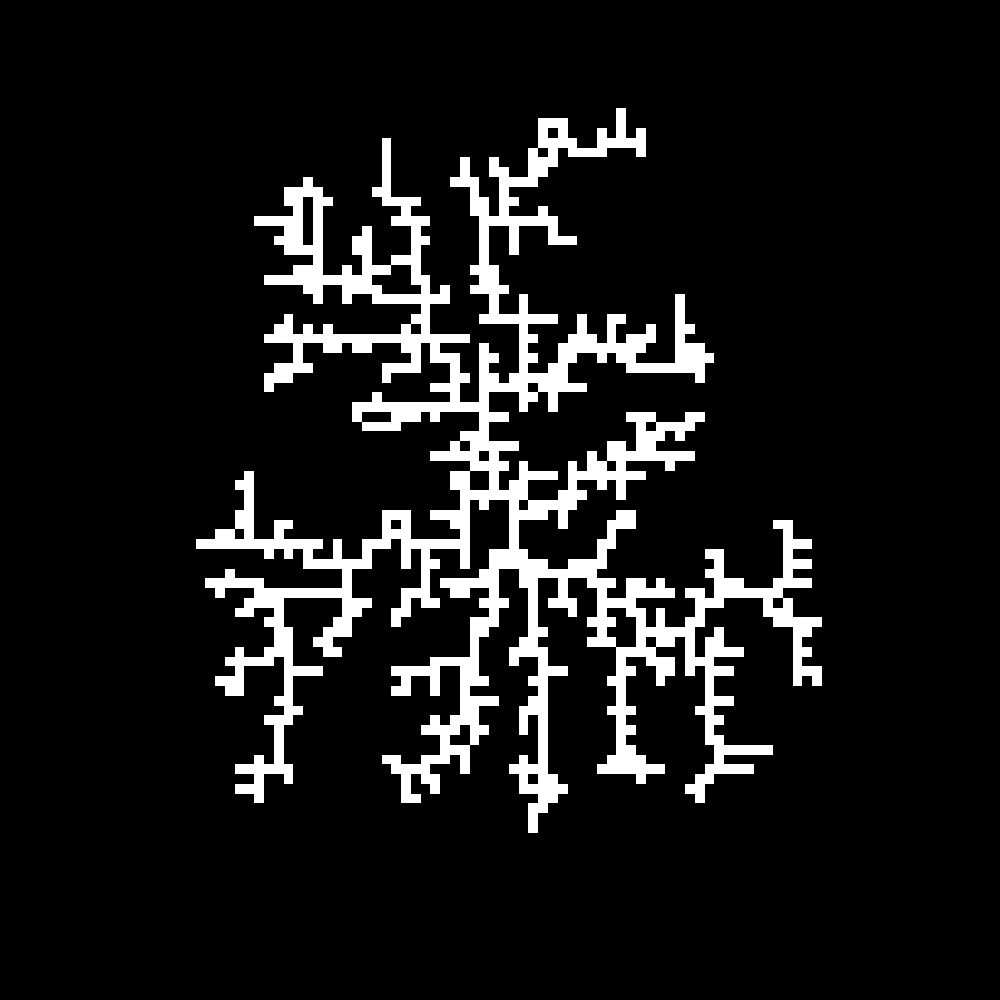

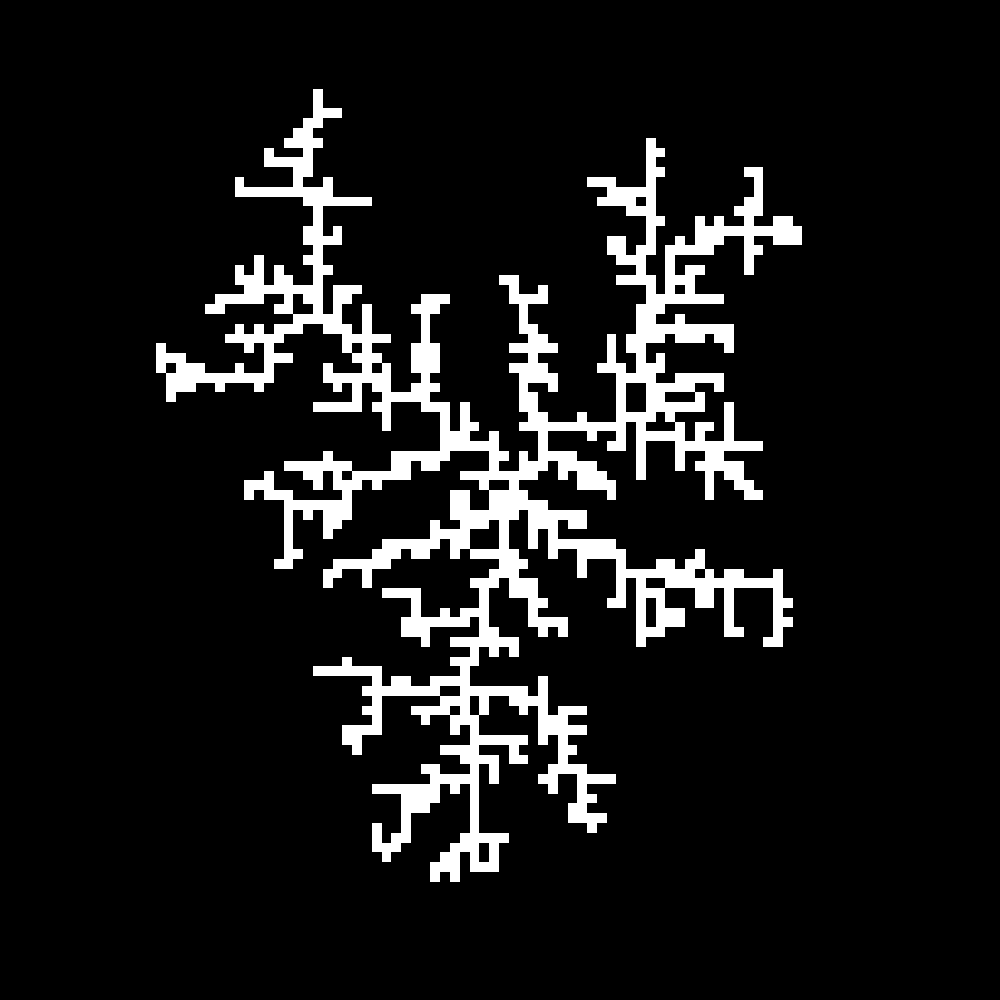

a result of the DLA algorithm where a cell is a white square and empty space is black a result of the DLA algorithm where a cell is a white square and empty space is black a result of the DLA algorithm where a cell is a white square and empty space is black
cqql
Shebang system you know how to make conversations with neurodivergent people by immediately infodumping. congratulations. this is a fine skill to have
yeah!
and now I got scared
because I had to do something to make it look interesting
first I tried blurring

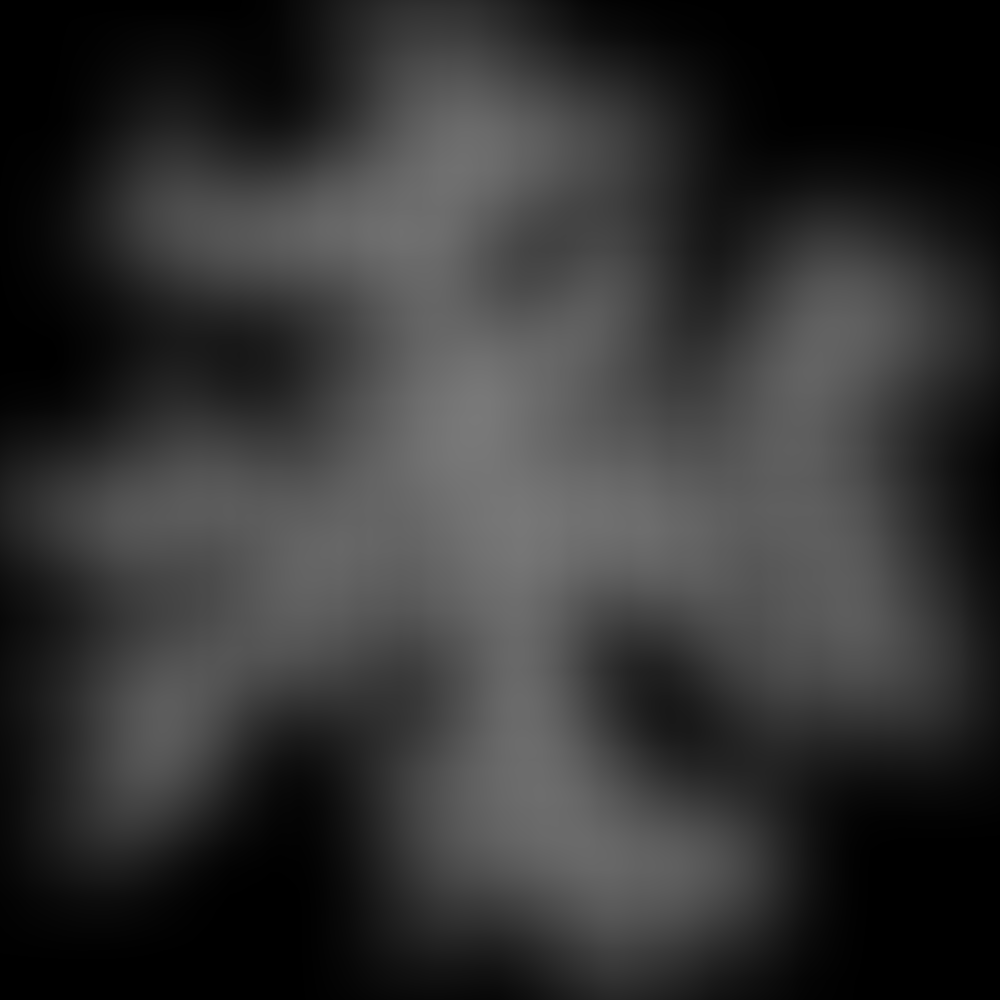

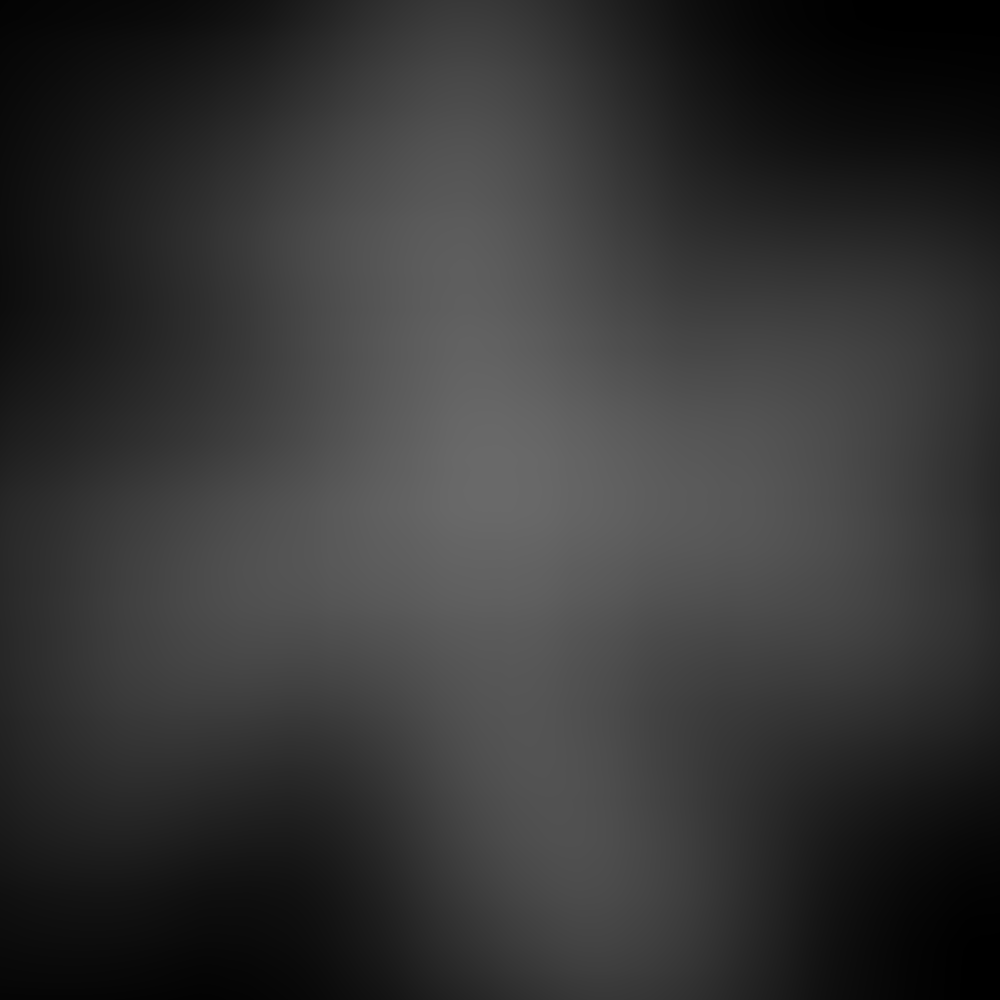

a result of the DLA algorithm where a cell is a white square and empty space is black a result of the DLA algorithm where a cell is a white square and empty space is black, blurred slightly a result of the DLA algorithm where a cell is a white square and empty space is black, blurred more a result of the DLA algorithm where a cell is a white square and empty space is black, blurred completely
some of them look more interesting than the original
so I decided to try coloring them with gradients
Shebang system
this is very interesting
cqql

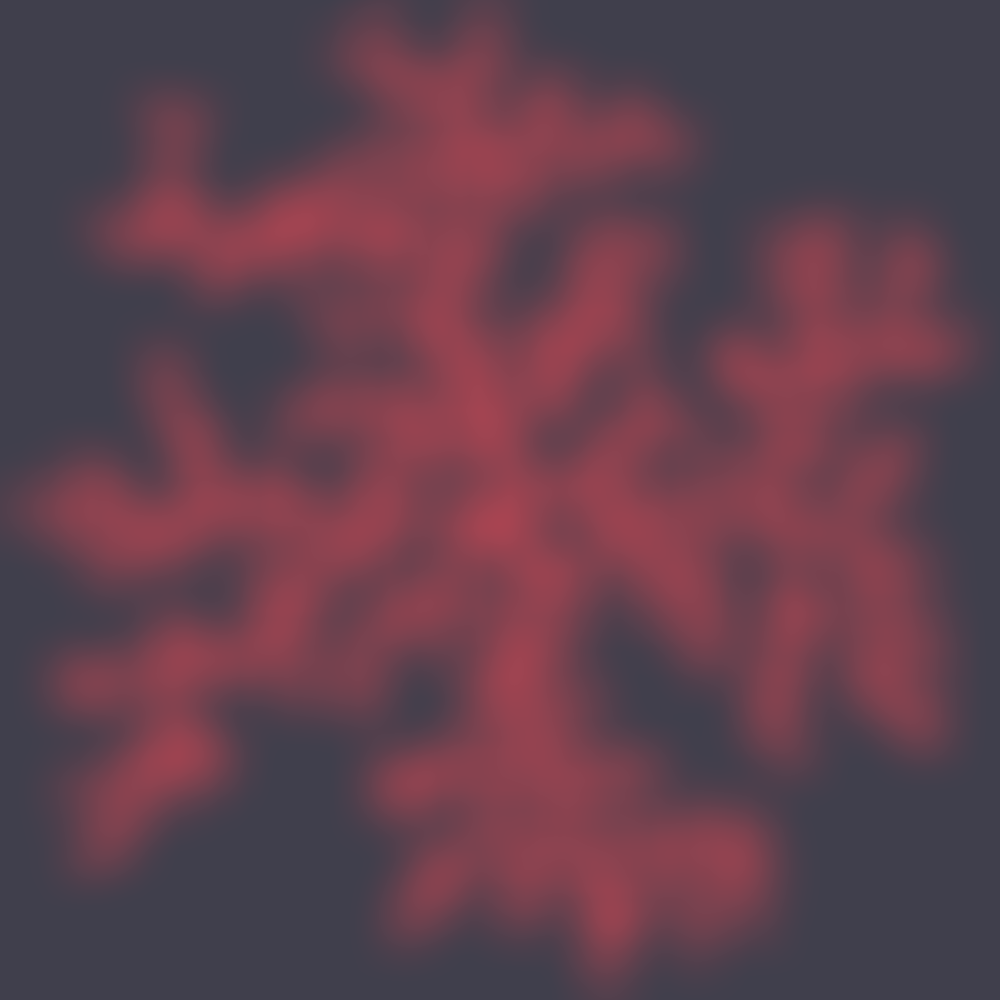

a result of the DLA algorithm where a cell is a red square and empty space is black, blurred slightly a result of the DLA algorithm where a cell is a red square and empty space is grey, blurred slightly a result of the DLA algorithm where a cell is a light blue square and empty space is blue, blurred slightly
this already looks fun! but I think it's still boring, so it needs more.
too much bouba, needs more kiki
Shebang system
REAL
it needs pointy grrrrr trrrnsgenderism
cqql
I decided to try overlaying the original unblurred shape in a different color that matches the scheme
and here we are

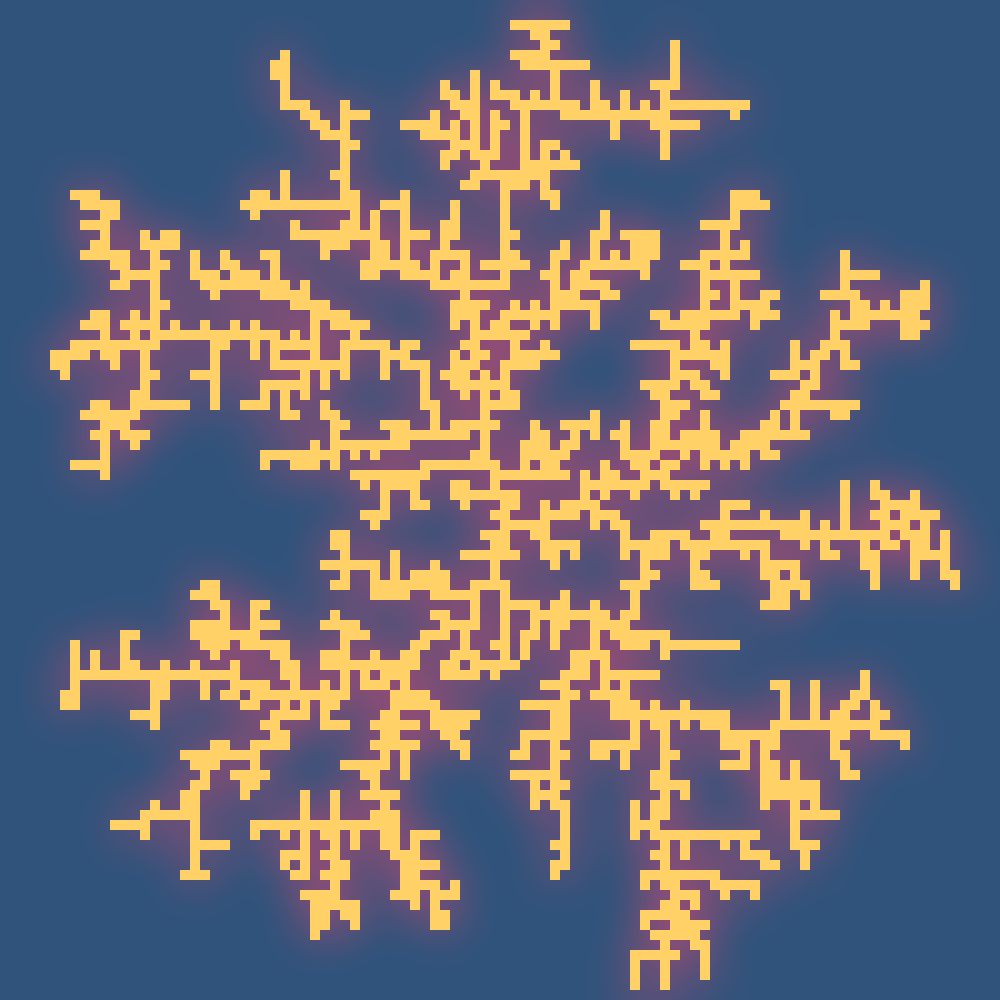

a result of the DLA algorithm where a cell is a red square and empty space is blue, blurred slightly, with the unblurred result overlaid on top in yellow
Shebang system
omfg
cqql

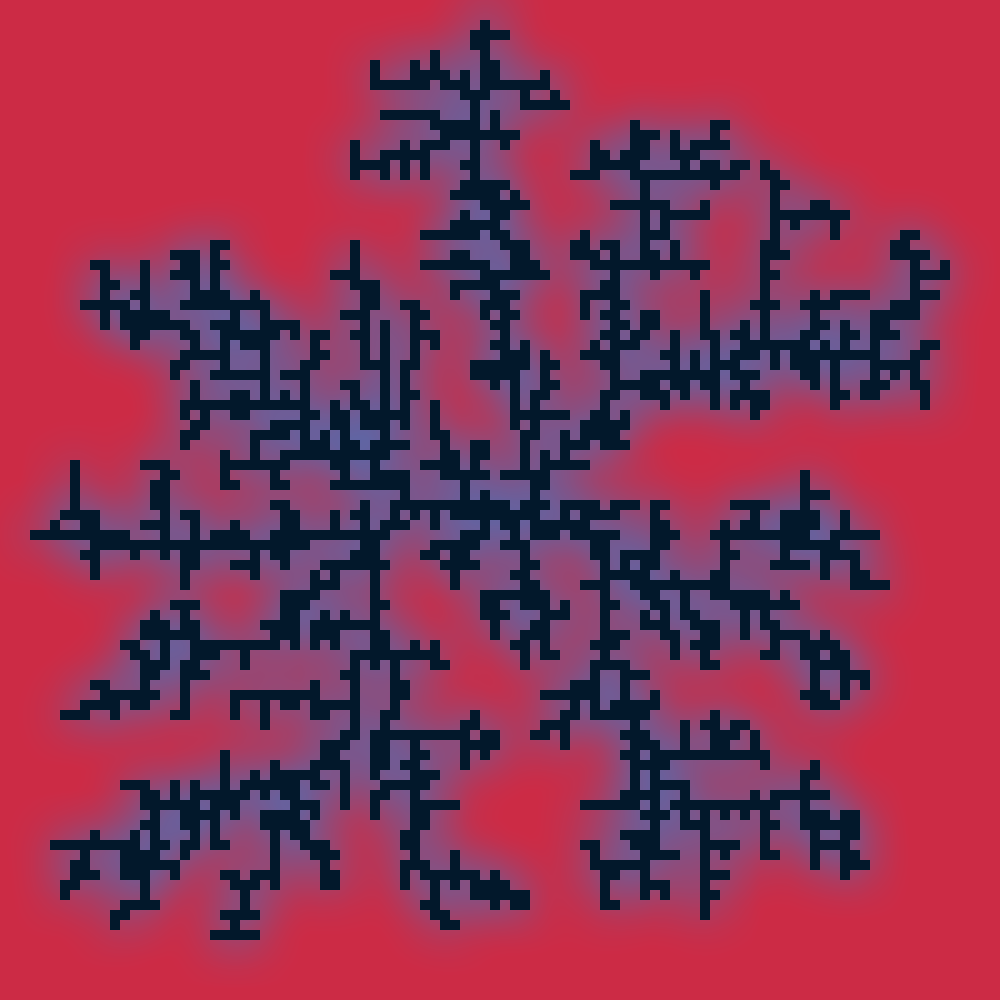

a result of the DLA algorithm where a cell is a dark green square and empty space is light green, blurred slightly, with the unblurred result overlaid on top in green a result of the DLA algorithm where a cell is a purple square and empty space is red, blurred slightly, with the unblurred result overlaid on top in very dark purple a result of the DLA algorithm where a cell is a light purple square and empty space is darker purple, blurred slightly, with the unblurred result overlaid on top in purplish white

we ended up generating the account header for shebang's fedi account with this.

Implementation

I published the code in this git repo: frost_patterns.

It builds into an executable with a cli interface for easy image generation. All information about it is in the README.md file.

Minimal example

I wrote it in Rust, here is the DLA algorithm for generating the grid:

fn generate_grid() -> [[bool; HEIGHT]; WIDTH] {
    let mut rng = ChaCha8Rng::seed_from_u64(SEED);

    let mut grid: [[bool; HEIGHT]; WIDTH] = [[false; HEIGHT]; WIDTH];

    grid[WIDTH / 2][HEIGHT / 2] = true;

    for particle_i in 0..NUM_PARTICLES {
        // place the particle randomly
        let mut x: isize = rng.gen_range(0..WIDTH).try_into().unwrap();
        let mut y: isize = rng.gen_range(0..HEIGHT).try_into().unwrap();

        // replace it randomly until it's on an empty space
        while is_stuck((x, y), &grid) || grid[x as usize][y as usize] {
            x = rng.gen_range(0..WIDTH).try_into().unwrap();
            y = rng.gen_range(0..HEIGHT).try_into().unwrap();
        }

        // random walk until it attaches to the main shape
        while !is_stuck((x, y), &grid) {
            let diff_x: isize = rng.gen_range(-1..=1);
            let diff_y: isize = rng.gen_range(-1..=1);

            if x + diff_x < WIDTH as isize
                && x + diff_x >= 0
                && y + diff_y < HEIGHT as isize
                && y + diff_y >= 0
                && !grid[(x + diff_x) as usize][(y + diff_y) as usize]
            {
                x += diff_x;
                y += diff_y;
            }
        }

        // make it part of the main shape
        grid[x as usize][y as usize] = true;

        // the generation takes a while usually, it's
        // a good idea to have an idea of the progress
        println!("particle {:5>}/{}", particle_i + 1, NUM_PARTICLES);
    }

    grid
}

// checks if any neighbors of the cell are part of the shape
fn is_stuck(xy: (isize, isize), grid: &[[bool; HEIGHT]; WIDTH]) -> bool {
    let (x, y) = xy;
    if x - 1 >= 0 && grid[usize::try_from(x - 1).unwrap()][usize::try_from(y).unwrap()] {
        return true;
    }

    if x + 1 < WIDTH.try_into().unwrap()
        && grid[usize::try_from(x + 1).unwrap()][usize::try_from(y).unwrap()]
    {
        return true;
    }

    if y - 1 >= 0 && grid[usize::try_from(x).unwrap()][usize::try_from(y - 1).unwrap()] {
        return true;
    }

    if y + 1 < HEIGHT.try_into().unwrap()
        && grid[usize::try_from(x).unwrap()][usize::try_from(y + 1).unwrap()]
    {
        return true;
    }

    return false;
}

You can start using this code just by printing out the grid like how I did at the start.

fn print_grid(grid: [[bool; HEIGHT]; WIDTH]) {
    for y in 0..HEIGHT {
        for x in 0..WIDTH {
            match grid[x][y] {
                true => print!("X"),
                false => print!("."),
            }
        }
        println!();
    }
}
